Semi-automated cell
The problem
The client required a semi-automated solution for the post-assembly stage of an injection moulded component. Two parts needed to be push-fit together, and the force required was causing repetitive strain injuries for operators performing the task manually. In addition, the client wanted to improve quality control during the assembly process. A system was required that could assist with the press-fit operation while incorporating vision-based inspection to check key aspects of the product as it was assembled.
Our solution

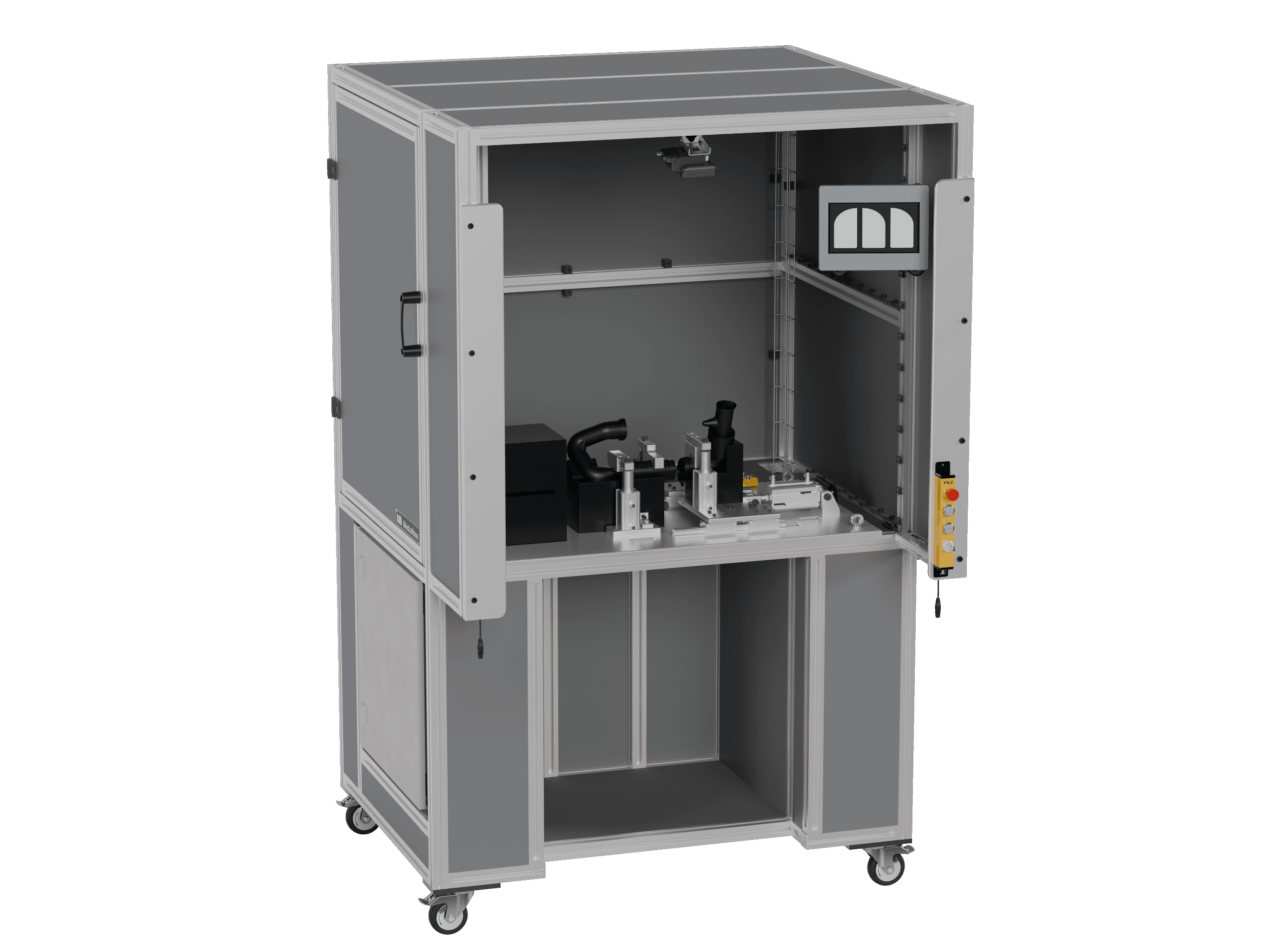

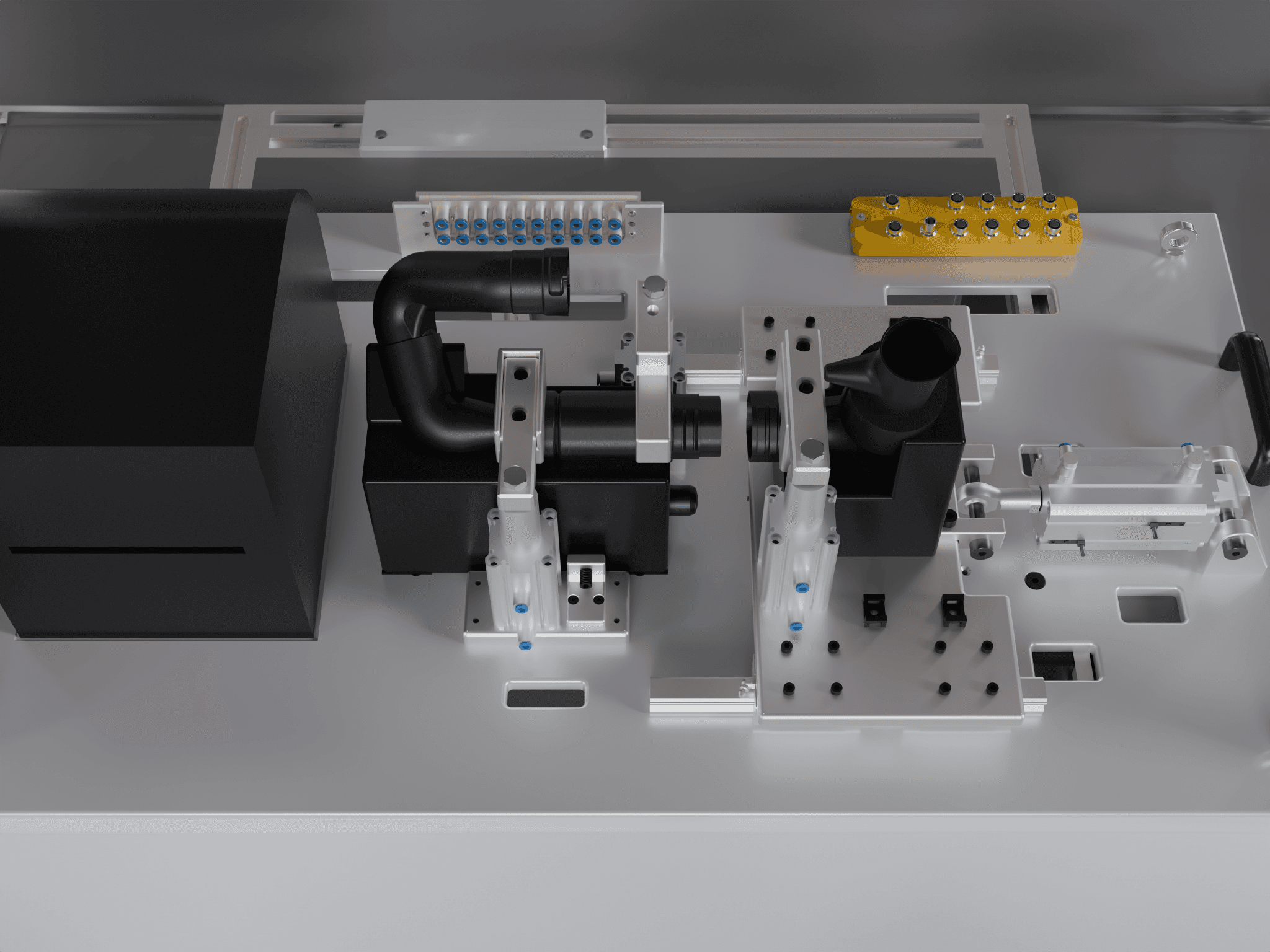

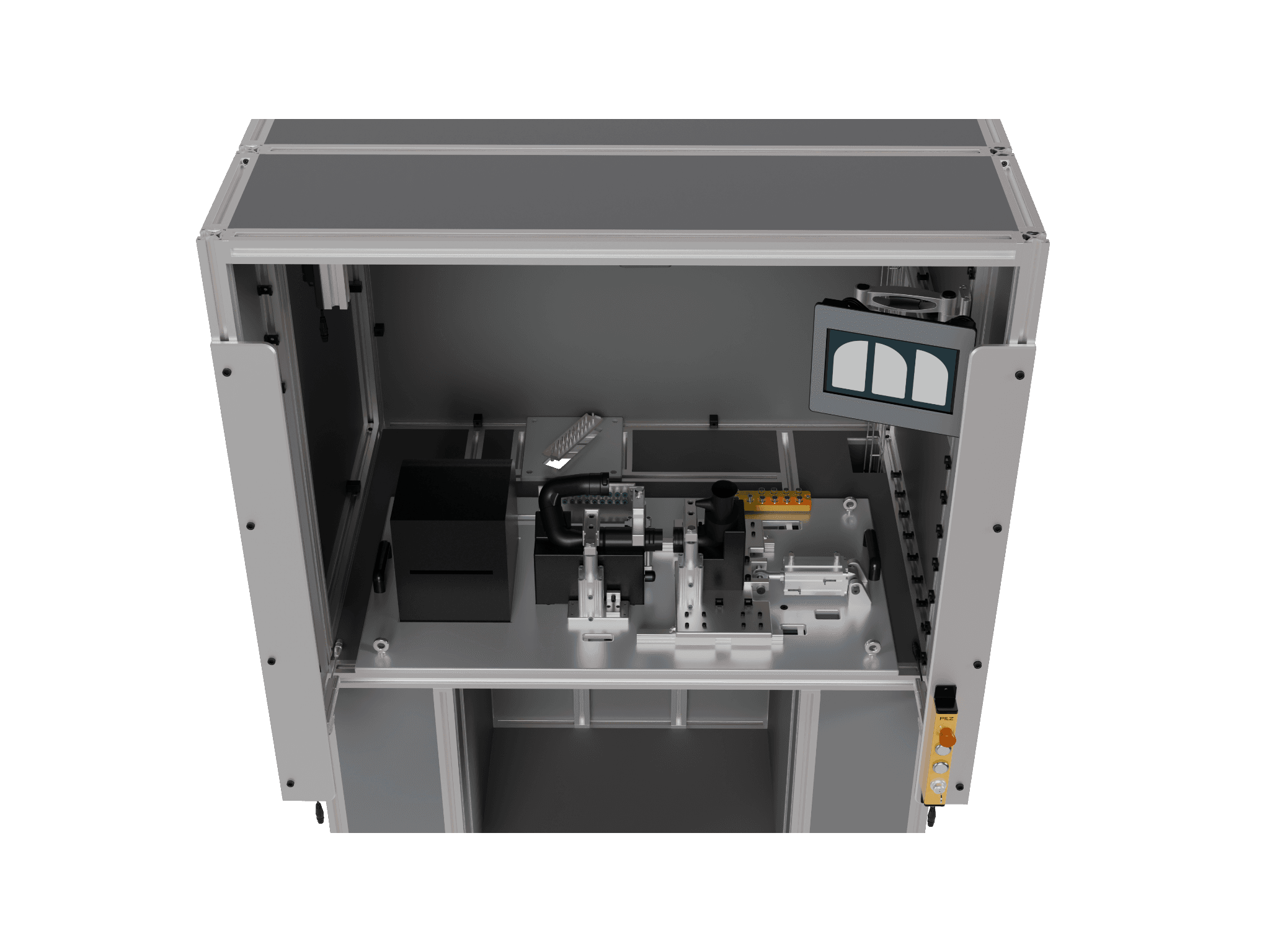

A semi-automated workstation was designed to remove the manual force required for the press-fit assembly process. Pneumatic actuation was used to apply the required assembly force in a controlled and repeatable manner, while custom fixturing ensured accurate positioning of the components. A vision system was integrated to inspect key product features during assembly, and the system was delivered with a full BOM and manufacturing drawings to support fabrication.
Key considerations
Force required for the press-fit operation, accurate part location using nests and clamps, and reliable guidance of moving components using linear rails. Tolerance stack-ups, adjustability for on-site setup, and operator ergonomics were also assessed. Integration of the vision system, pneumatic components, and overall process reliability were considered to ensure consistent assembly and inspection.
